Mcbazel Surecom SW-102 Digital VHF/UHF 125-525Mhz Antenna Power & SWR Meter

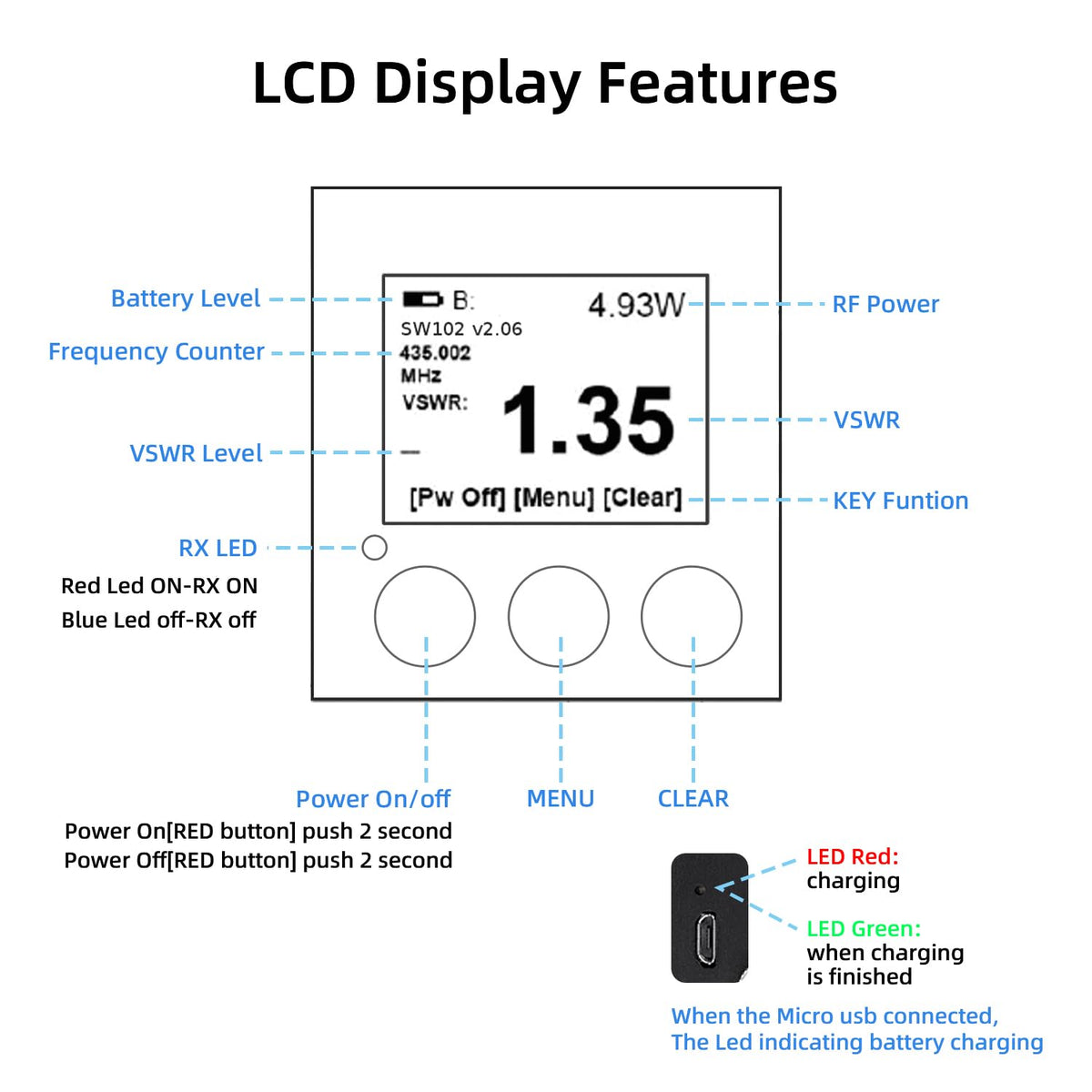

• VSWR. Forward and reflected power direct digital readout, without any calibration. NOTE: DOES NOT compatible with Digital Radio(For example, DMR Digital Radio).

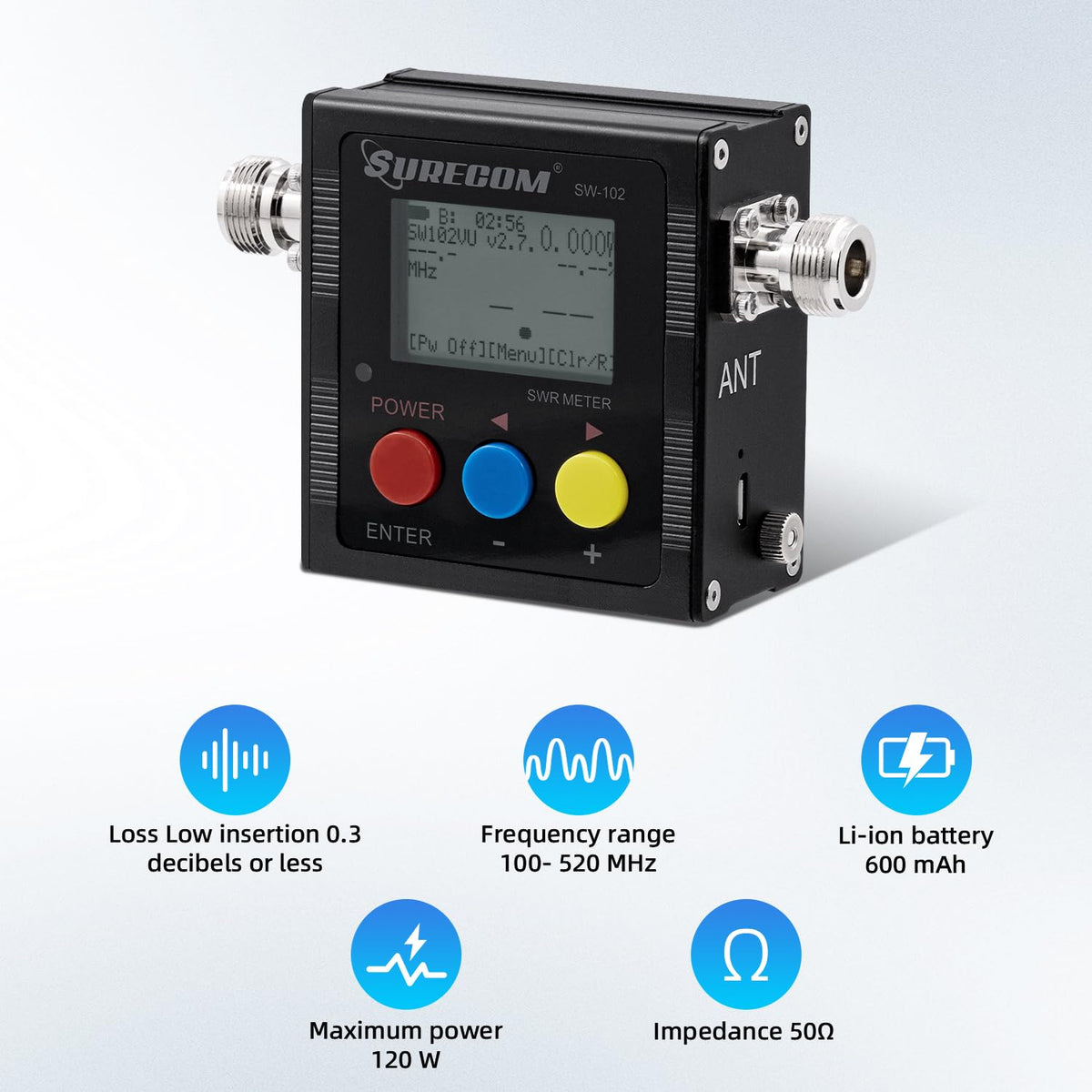

• The SW-102 Digital SWR Meter is engineered for optimal performance within the popular VHF (144-148MHz bands) and UHF (430-450MHz bands) amateur radio bands. This is where it delivers its most accurate readings for Standing Wave Ratio (SWR) and RF Power output, essential for setting up and maintaining efficient antenna systems.Maximum measurable power range up to 120W.
• Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.

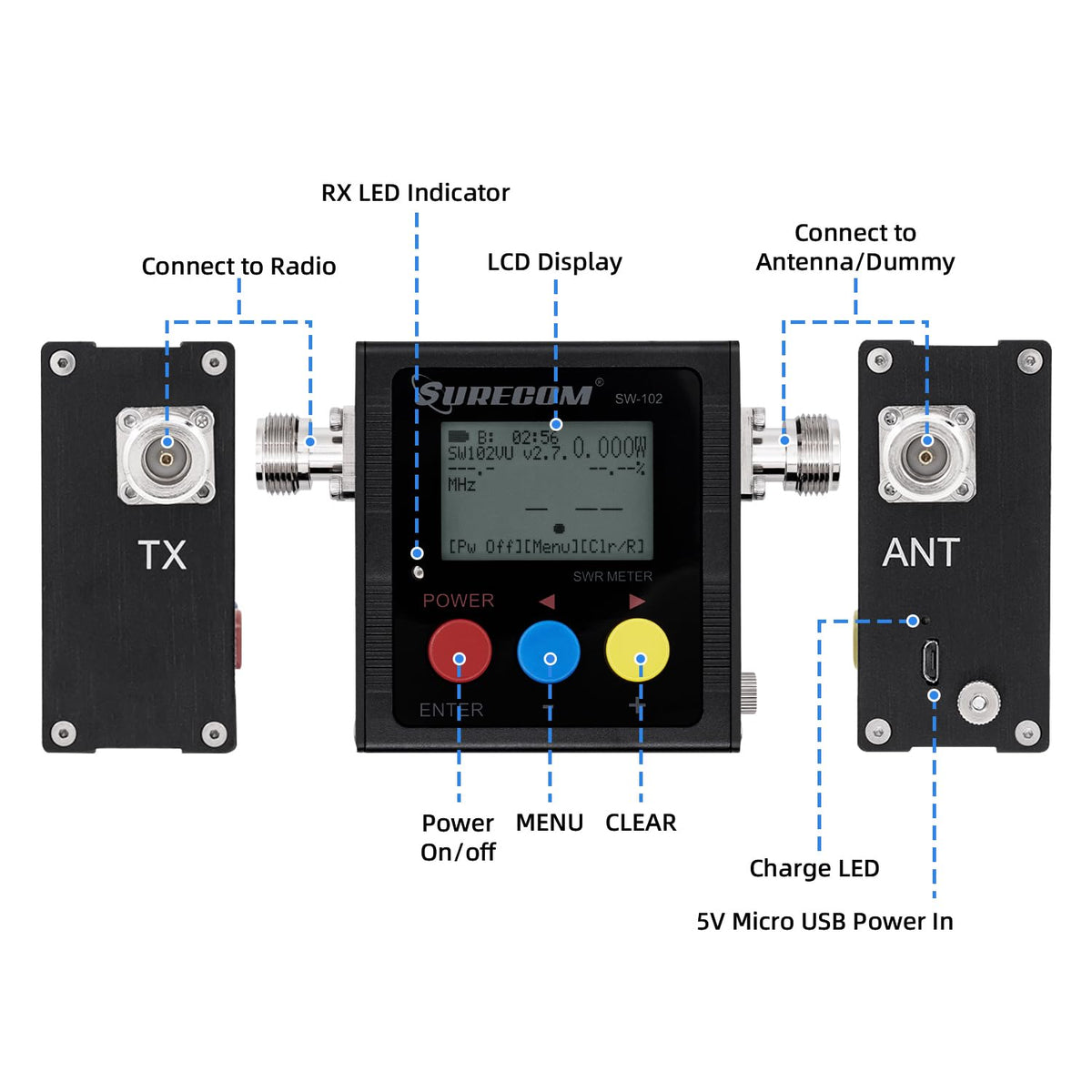

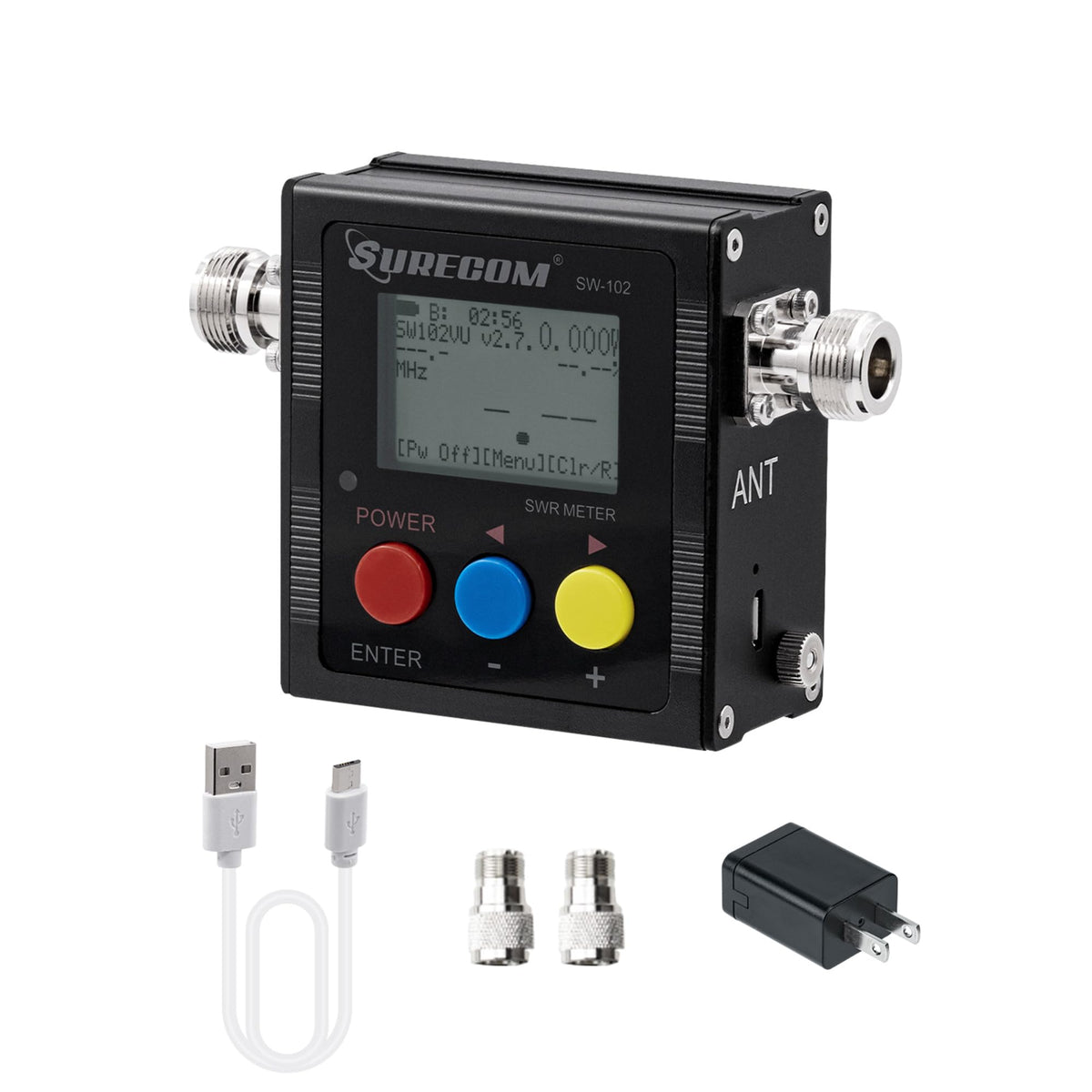

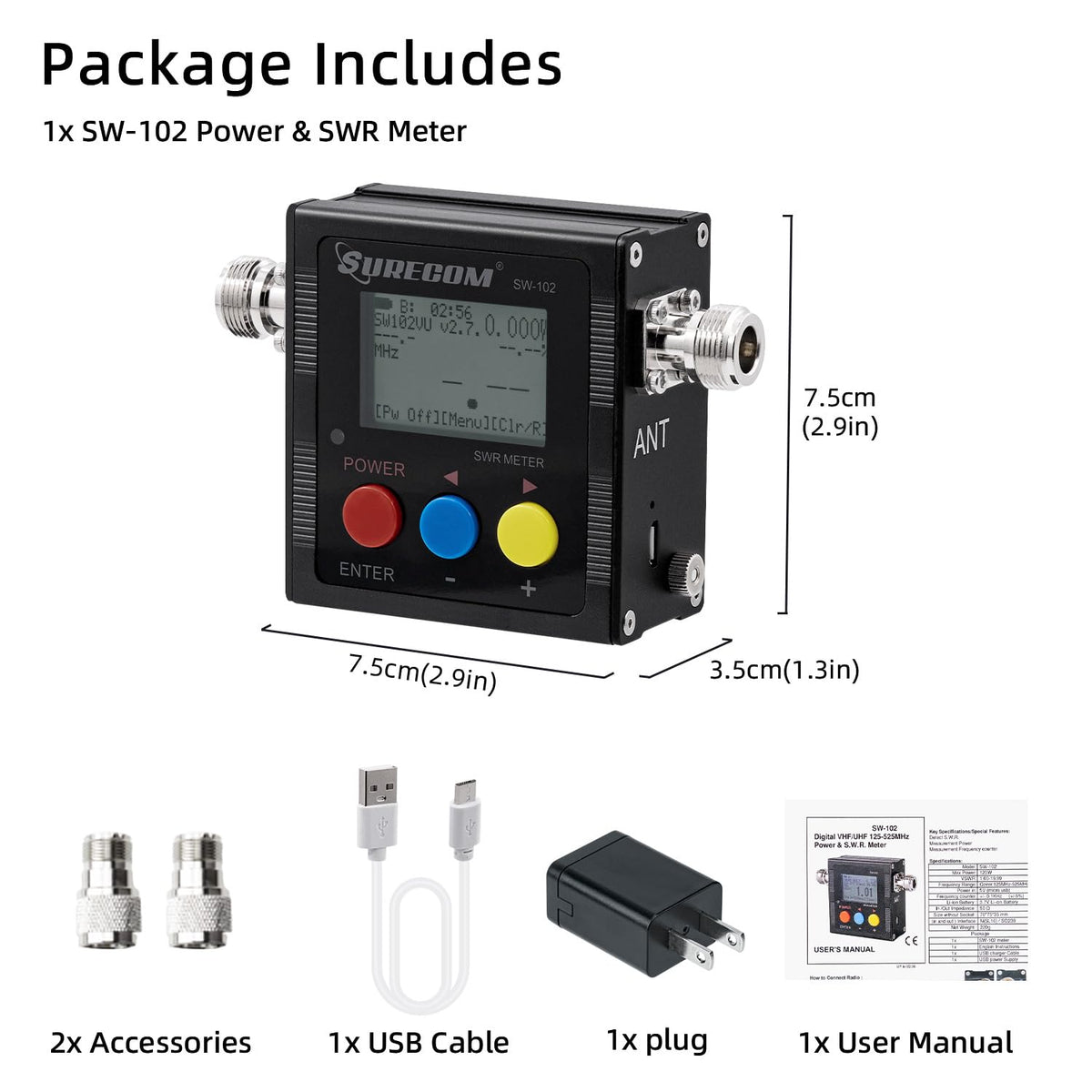

• N-Type Base Connectors: Features robust N-Type female ports for high-frequency accuracy and durability. Comes with 2 N-Type to SO239 adapters - ready to connect to most ham radios and antennas! If your device uses connectors OTHER than N-Type or SO239 (e.g. BNC, SMA, PL-259, TNC), additional third-party adapters are required and not included.

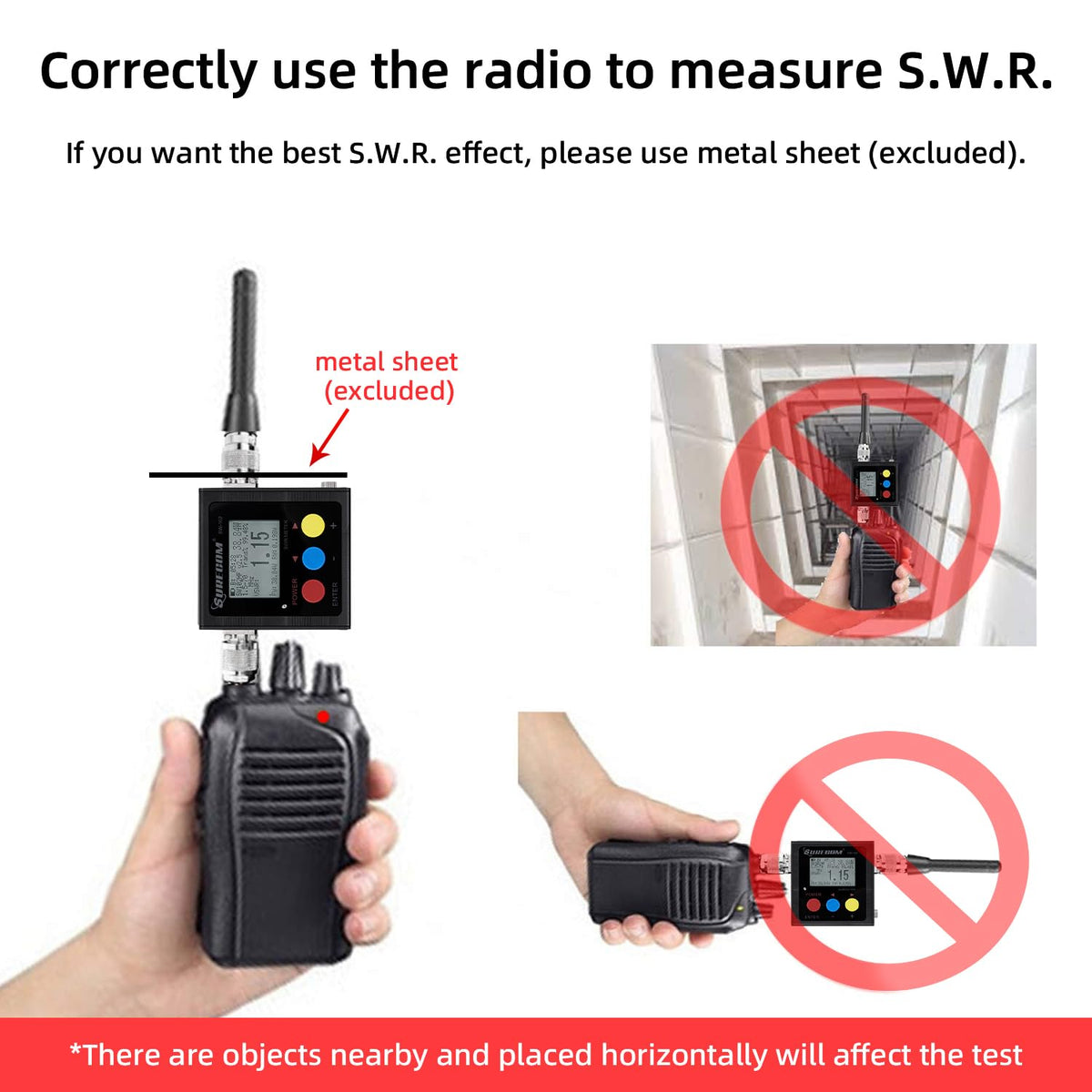

• Frequency range: 125 - 525MHz. NOTE: ground plate is NOT included.
• Note：The display comes with a protective film attached to the screen to prevent scratches during transportation. Please carefully inspect and remove the protective film before your first use to achieve the best display performance.Note: The meter can measure CW, AM & FM only, cannot meausre RTTY and SSB.

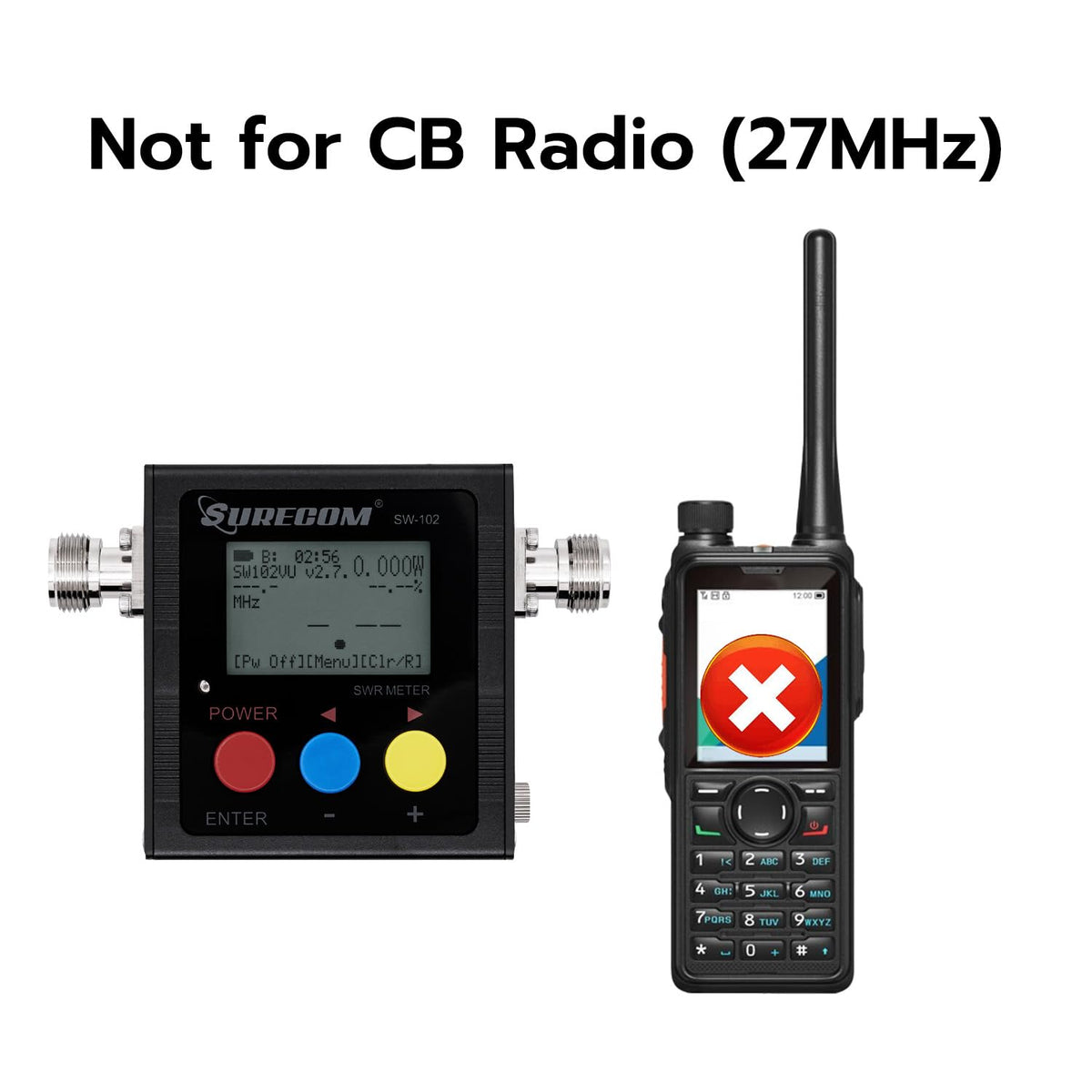

• NOT for CB Radio: This SWR meter is NOT compatible with CB radios operating on 27MHz CB channel frequencies. It is designed for higher VHF/UHF bands. Ensure compatibility with your radio's frequency range before purchase.

Specifications

• Antenna: Radio
• Color: Black
• Number of Channels: 1
• Impedance: 50 ohm
• Maximum Range: 525 feet
• Product Dimensions: 1.81"L x 4.8"W x 7.17"H
• Number of Packs: 1
• AntennaDescription: Radio
• Unit Count: 1 Count
• Number of Items: 1
• Item Weight: 12 ounces
• Mfr Part Number: AFN-msc-030001
